Using Soft Tissue Resin

Using Soft Tissue Resin

注意：

为避免损坏设备，请查看文章挑选适用的树脂材料中的树脂槽兼容性表，以确认您使用的树脂槽与相应材料兼容。

Using Flexible 80A Resin and color pigments as part of a digital implant prosthetic workflow, healthcare professionals can now 3D print soft tissue parts that better simulate the gingiva for dental implant modeling purposes. Customizable color pigments allow you to tailor the color and opacity of your final printed model.

Soft Tissue Resin prints at 50 microns and 100 microns.

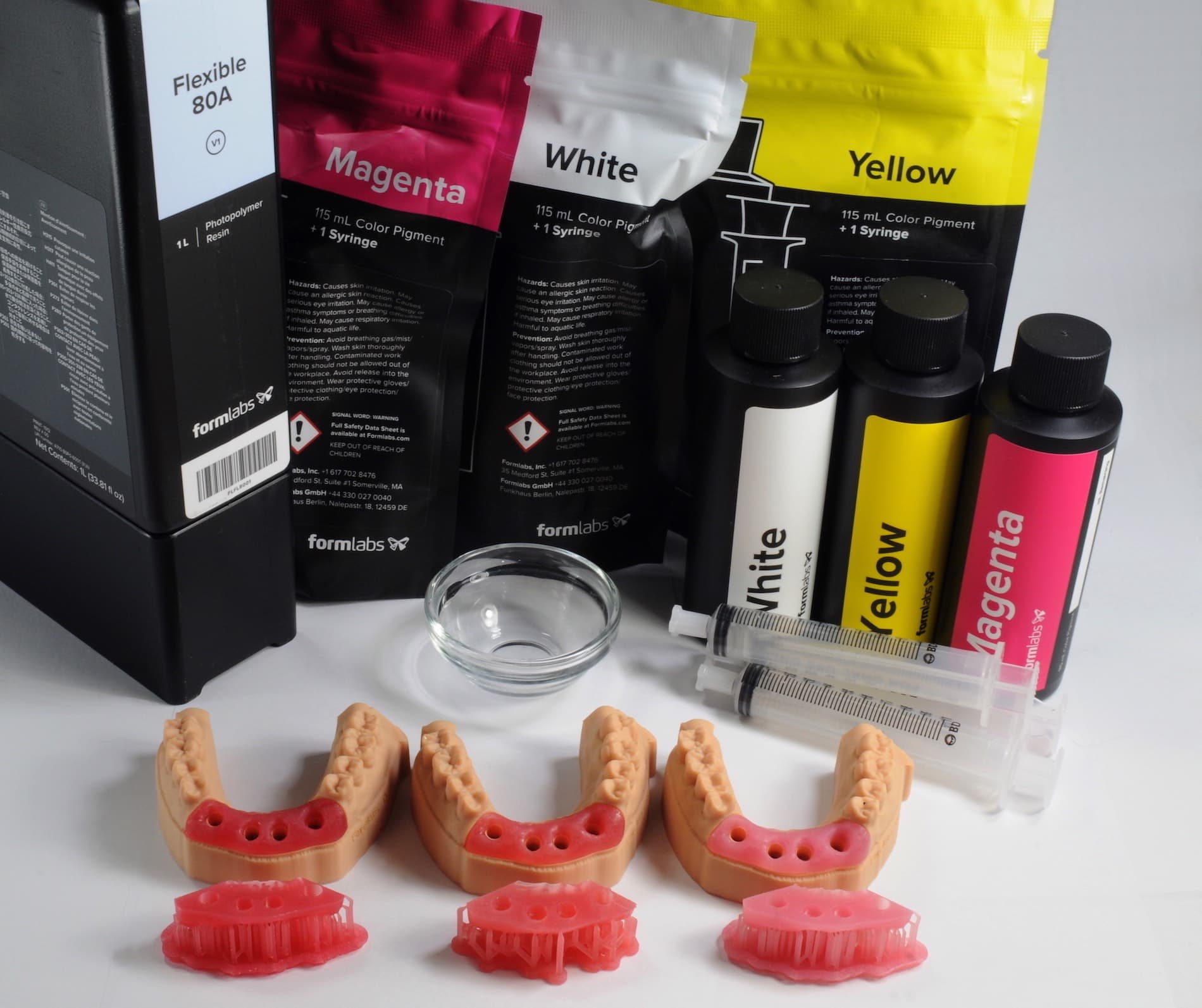

soft tissue resins.

Recommended for:

  • Implant models
  • Gingiva masks

Note:

To learn more about the performance or specific material properties of Soft Tissue Resin, please refer to the Safety Data Sheet (SDS) and Technical Data Sheet (TDS). Always consult the SDS as the primary source of information to understand safety and handling of Formlabs materials.

所需资源

工作流程概览

Notice:

This is an abbreviated version of the application guide, 3D Printing Soft Tissue for Gingiva Mask on Dental Models [en]. Read the application guide for detailed instructions about the workflow for Soft Tissue Resin.

扫描

In order to 3D print a permanent crown or other restoration, use a scanner to collect anatomical data of the patient's dentition. Either scan the patient directly with an intraoral scanner, or use a desktop optical scanner to scan a polyvinyl siloxane (PVS) impression or stone model.

设计

Use a dental CAD software package to process and design the restoration before printing. Choose software that offers open STL file export.

打印

注意：

为避免损坏设备，请查看文章挑选适用的树脂材料中的树脂槽兼容性表，以确认您使用的树脂槽与相应材料兼容。

Follow the instructions in the application guide, 3D Printing Soft Tissue for Gingiva Mask on Dental Models [en], to mix the appropriate shade of Soft Tissue Resin.

Install or update PreForm, then set up the next print job.

To prepare a model for printing in PreForm:

  1. Open a model.
  2. Select the resin, resin version, and the desired layer thickness.
  3. Orient to preserve fine details.
  4. Generate supports.
  5. Send the print job to the printer.

Use the PreForm settings for Flexible 80A Resin: 50 microns and 100 microns.

后处理

Form Wash 可搅拌溶剂以清洗部件，在清洗达到设定时间后从中取出部件。请按照支持文档 Form Wash 时间设置的说明来清洗部件。应特别注意与机械性能或生物相容性要求相关的信息。

如果模型具有中空结构或内部通道，则应确保将这些特征中的液态树脂冲洗干净。待部件完全干燥后，再进行后固化。

后固化要求

Soft Tissue Resin requires post-curing to reach its optimal mechanical properties.

Refer to the support article Form Cure time and temperature settings for post-curing recommendations.
